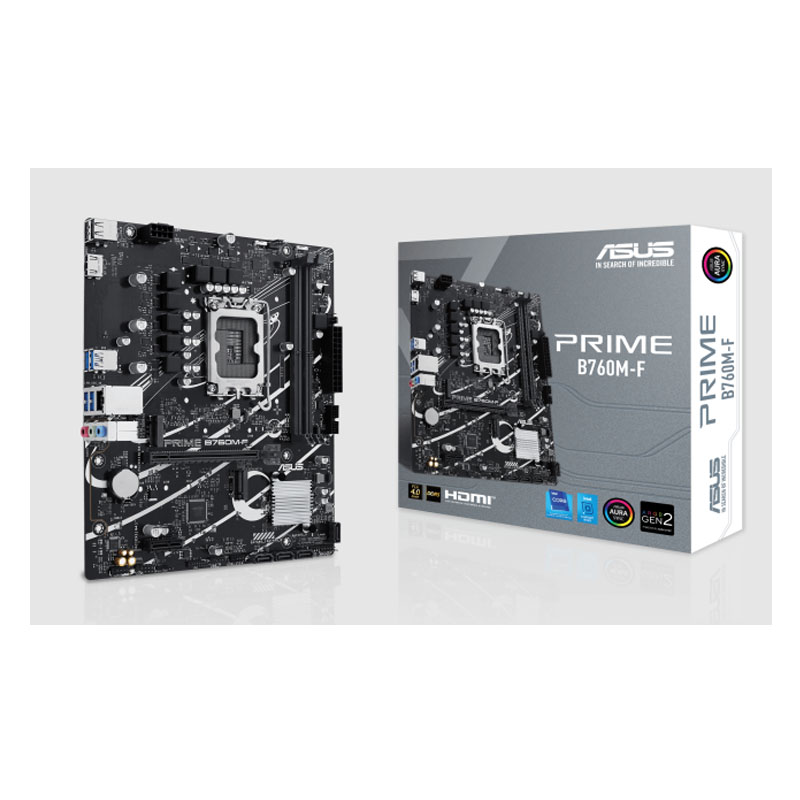

Mainboard ASUS Prime B760M-F DDR5

  • Trong kho:
  • Bảo hành: 36 tháng

Thương hiệu:ASUS

Socket: LGA 1700 hỗ trợ CPU intel thế hệ 12,13,14

Kích thước: mATX Khe cắm RAM: 2 khe ram DDR5 (Tối đa 64GB)

Khe cắm mở rộng:1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot

Khe cắm ổ cứng: 2 x M.2 connectors, 4 x SATA 6Gb/s connectors

Giá bán: 2.590.000 VNĐ
Giá chưa giảm: 2.790.000 VNĐ
  • Sản phẩm chính hãng
  • Giao hàng toàn quốc
  • Giá ưu đãi nhất
  • Hỗ trợ 24/7

Ưu đãi và khuyến mãi:

Bảo Hành Tại Nơi Sử Dụng (Áp Dụng Nội Thành Hà Nội)

Bảo Hành Siêu Tốc 1 Đổi 1 Trong 24h

Vận Chuyển Toàn Quốc

Thông số kỹ thuật

Model
PRIME B760M-F

CPU
Intel® Socket LGA1700 for Intel® Core14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics
1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@30Hz as specified in HDMI 1.4.
Expansion Slots
Intel® Core™ Processors (14th  & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core Processors (14th  & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)*
Front USB (Total 5 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Đặc điểm nổi bật

Mainboard ASUS Prime B760M-F DDR5

Bo mạch chủ Intel® B760 LGA 1700 micro-ATX với PCIe 4.0, hai khe cắm PCIe 4.0 M.2, DDR5, Realtek 1Gb Ethernet, HDMI™, SATA 6Gbps, cổng USB 5Gbps phía trước, Aura Sync Sẵn sàng cho PC AI Nâng cao: Được thiết kế cho tương lai của điện toán AI, với sức mạnh và khả năng kết nối cần thiết cho các ứng dụng AI khắt khe Ổ cắm Intel® LGA 1700: Sẵn sàng cho bộ vi xử lý Intel® thế hệ 14, 13 và 12 Kết nối siêu nhanh: PCIe 4.0, hai khe cắm PCIe 4.0 M.2, Realtek 1Gb Ethernet và hỗ trợ USB 5Gbps phía trước Tản nhiệt toàn diện: Tản nhiệt PCH, đầu cắm quạt lai và Fan Xpert 2+ Đèn RGB Aura Sync: Đầu cắm Gen 2 có thể định địa chỉ tích hợp cho dải đèn LED RGB, dễ dàng đồng bộ với phần cứng hỗ trợ Aura Sync AI hai chiều Khử tiếng ồn: Giảm tiếng ồn nền từ micrô và đầu ra âm thanh để giao tiếp rõ ràng trong trò chơi hoặc hội nghị truyền hình
